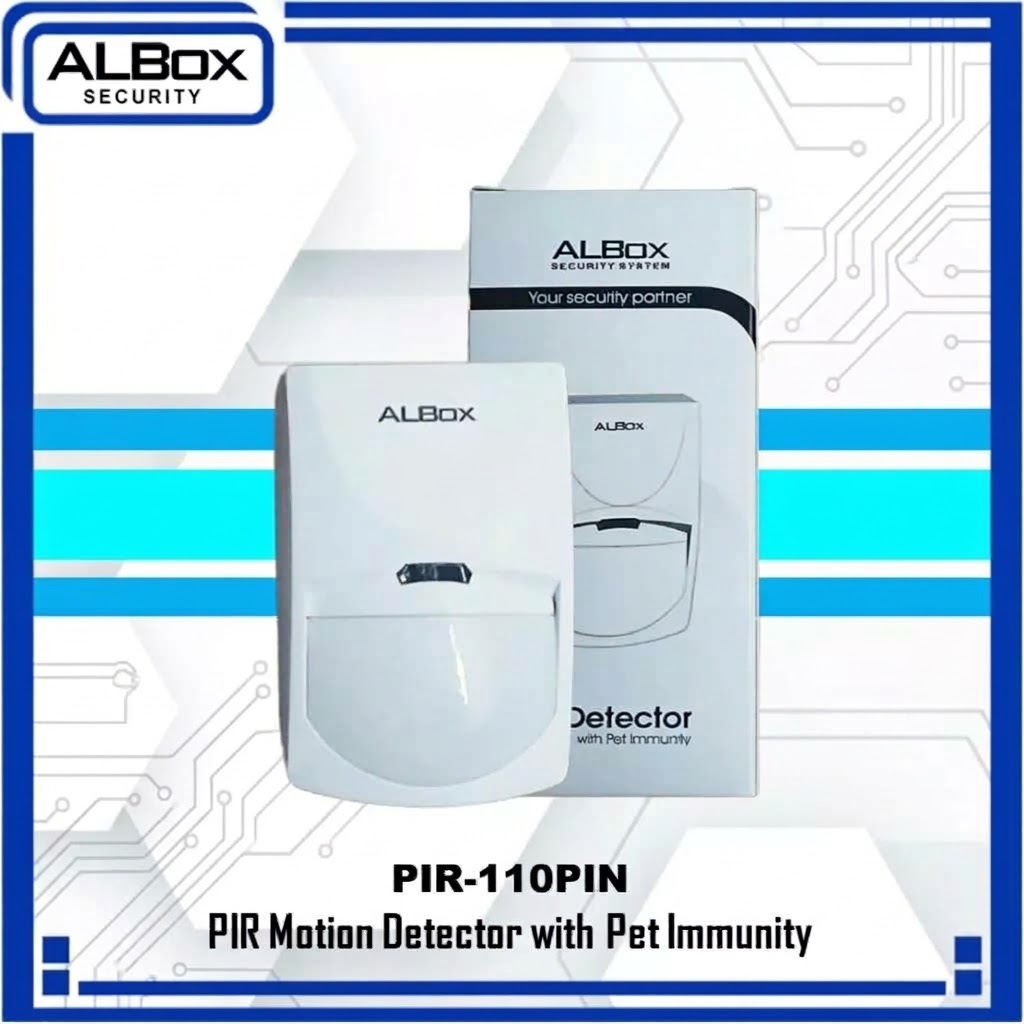

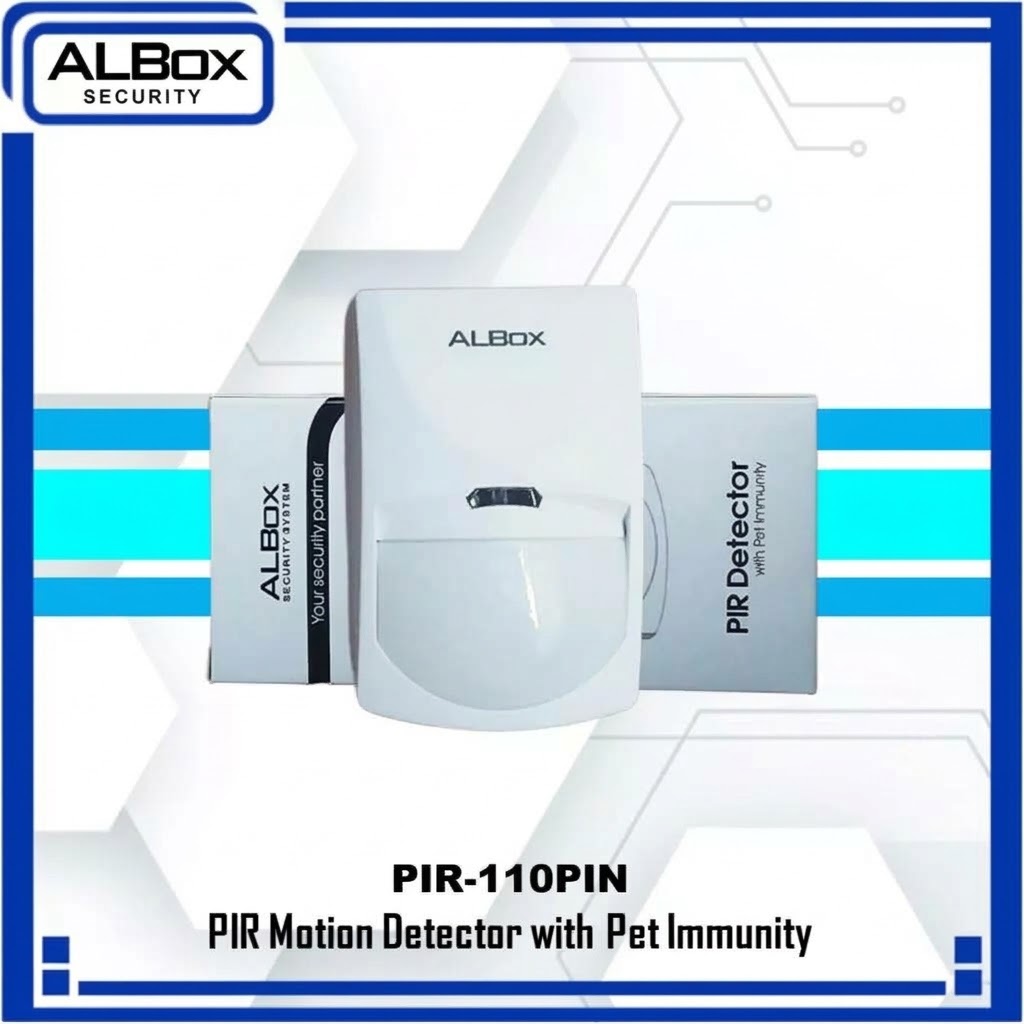

ALBOX PIR-110-PIN PIR Motion Detector Pet Immunity

- Power Supply : 9-16V DC, 12 V Typical
- Pet Immunity : Up to 18 kg, 60 cm
- Detection Range : 12 x 12 m, 110°C - 25°C
- Current Drain : N.C: 5 mA, N.O:15 mA, 12V DC
- Alarm Output : N.C/N.O 30V DC, 0.2 A max.
- Alarm Period (s) : 1.5 - 2.5
- Pulse Count : 2/3 selectable
- Tamper Switch : N.C Cover Open Activates
- Walk Test LED : Red, Can be disable
- RFI immunity : Ave. 20V/m (10-1000MHz)
- Detectable Speed : 0.3 - 1.5 m/s
- Mounting Height : 2.2 - 2.4 m, typical 2.3 m
- Humidity : 95% RH maximum
